DESIGN MODULE
STEEL ESSENCE™
The Art of Steel, Masterfully Formed in Aluminum
Steel Essence™ is our elegantly crafted design module that transforms any Styline aluminum system into the timeless aesthetic of true steel architecture. More than a finish or accessory, Steel Essence™ is a complete visual language — one defined by proportion, refinement, and the quiet confidence of handcrafted detail.
Through meticulously curated simulated steel grids, we outline each window or door with an intentional geometry that echoes the purity of classic steel fenestration. These grids are engineered with specially extruded profiles, aligned between or within insulated glass units, and secured with manufactured cross-clamps that feel authentic, durable, and built to withstand the test of time.
Finished with premium anodized, painted or powder-coated surfaces that capture the nuanced sheen and tactile richness of handcrafted steel, the Steel Essence™ module delivers a look that is both iconic and contemporary: the character of steel, with the performance and versatility of aluminum.

ENGINEERED COMPONENTS
A Complete Visual Language
Simulated Steel Grids
Specially extruded profiles aligned between or within insulated glass units, secured with manufactured cross-clamps for authentic steel geometry.
Custom Lock Casings
Sculpted and proportioned to mirror genuine steel components, with mortice-fit internal construction and precision glass cutaways.
Exterior Grid Applications
Varying depths, reveals, and configurations — each selected to honor the architectural vision and evoke the spirit of steel craftsmanship.
Premium Finishes
Anodized, painted, or powder-coated surfaces that capture the nuanced sheen and tactile richness of handcrafted steel.


TECHNICAL DETAILS
Module Specifications
Grid Profile Depth
Variable (shallow, medium, deep)
Grid Material
Extruded 6063-T5 Aluminum
Grid Mounting
Between or within IGU
Cross-Clamp System
Manufactured precision clamps
Finish Options
Anodized, Painted, Powder-Coated
Lock Casing Fit
Mortice-fit internal
Compatible Series
2500, 3500, 1500, PD800, S200
Bottom Rail Heights
Variable (per steel replication)
Thermal Performance
Inherits host system ratings

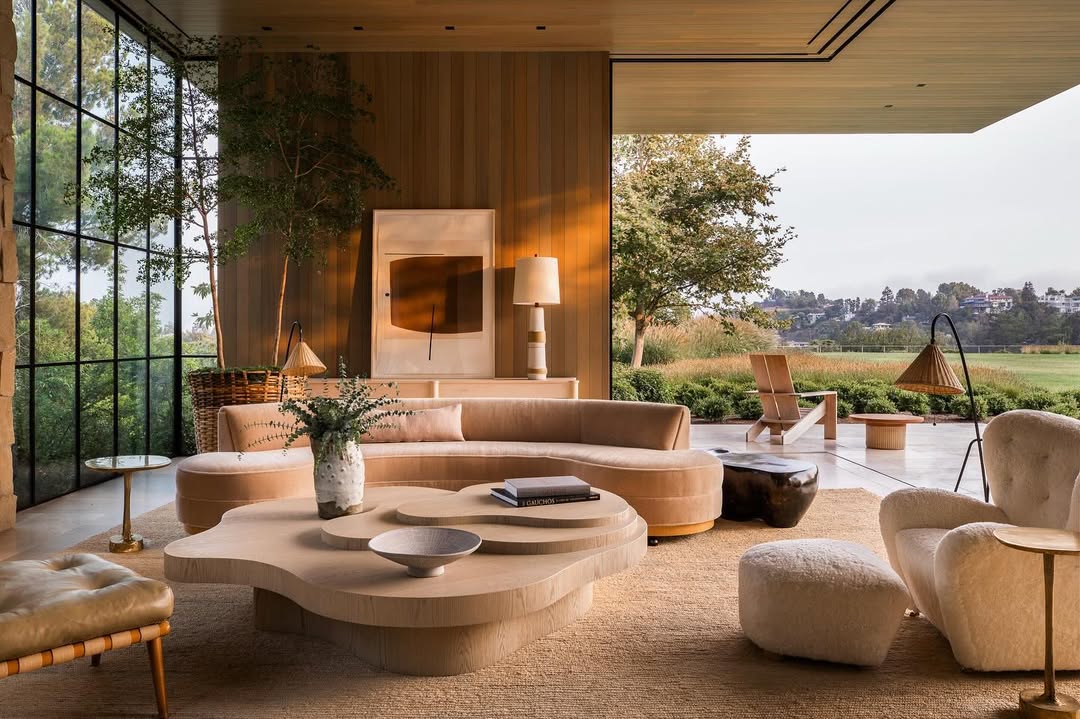

INDOOR — OUTDOOR
Where steel character meets seamless living.

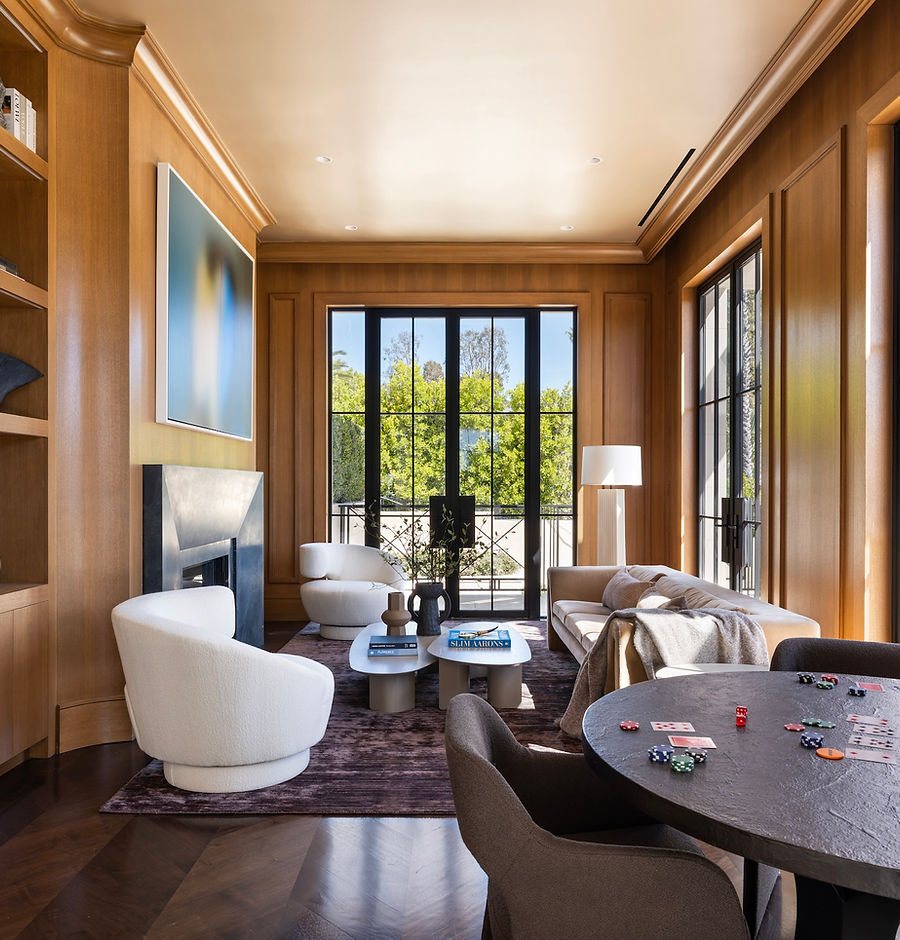

1500 SERIES — CASING DESIGN
Crafted with Intention
The 1500 Series lock casings were engineered to deliver a steel-true aesthetic within an aluminum system. Every element was designed to mirror the authenticity and depth of handcrafted steel work.
- Steel-inspired form language with proportioned geometry
- Tapered edges and sculpted transitions replicating steel fabrication
- Precision glass cutaways for clean sightlines
- Mortice-fit internal construction
- Compatibility with Steel Essence™ grid applications

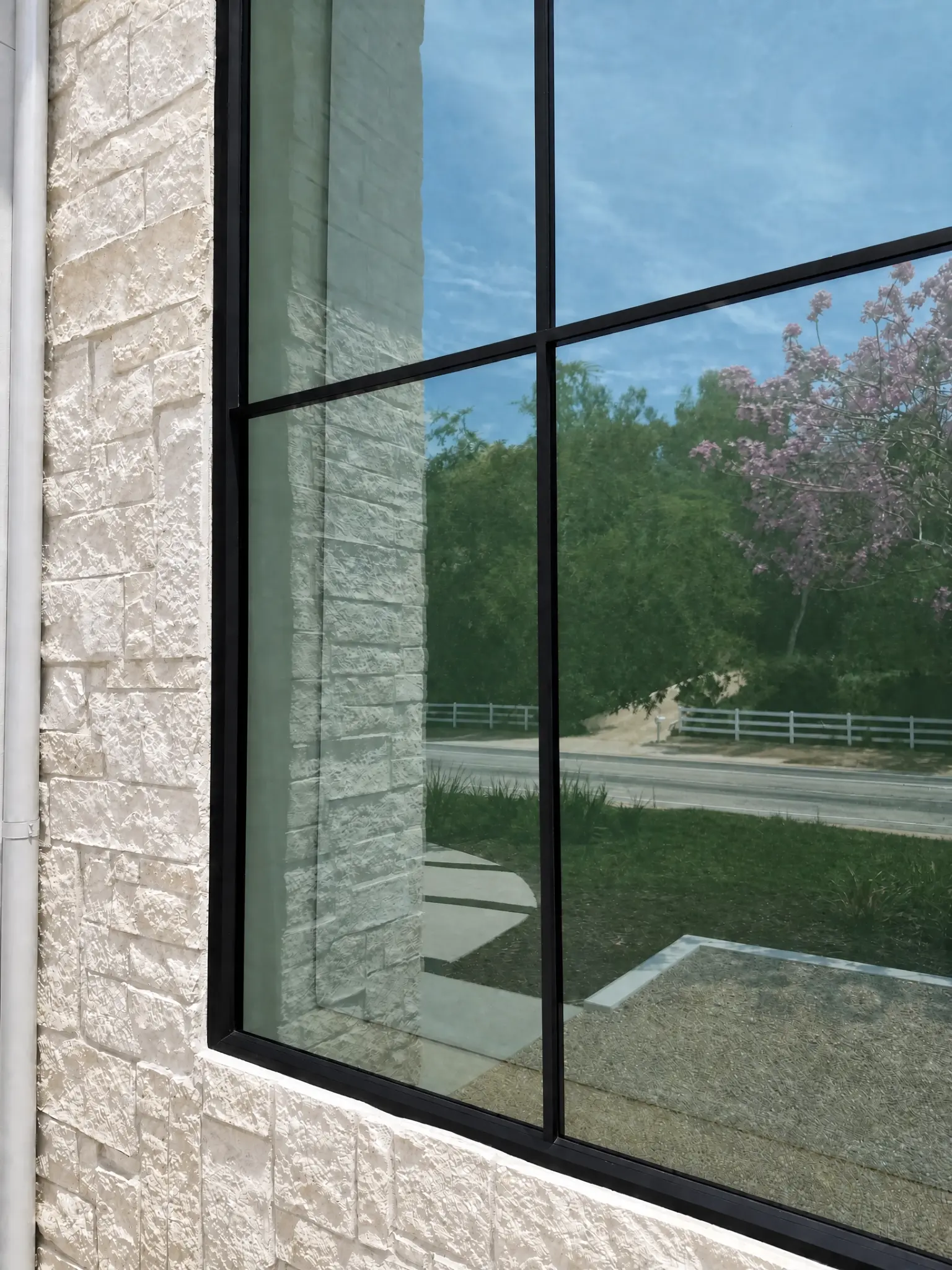

EXTERIOR DETAIL
Authentic Shadow Lines
The depth and reveal of each grid profile creates natural shadow lines that shift throughout the day — replicating the dimensional quality of true steel fenestration against any facade material.

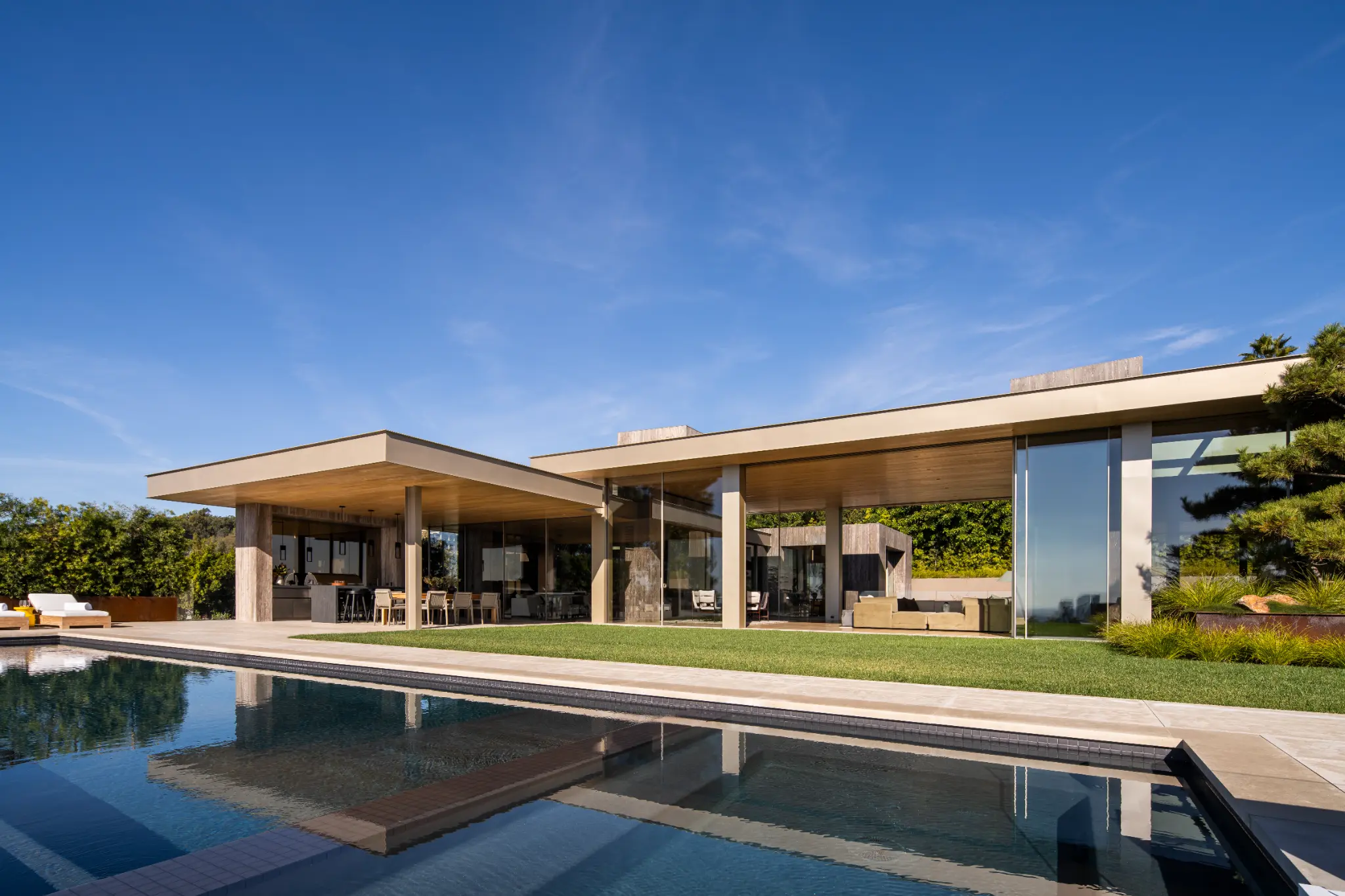

STEEL ESSENCE™ SLIDING DOOR
Steel Character, Sliding Performance
The Steel Essence™ Sliding Door brings the unmistakable look of steel to a system built for smooth, modern living. With our signature 3/4" stiles, the sliding series becomes the perfect foundation for the Steel Essence aesthetic — clean, disciplined, and true to the proportions of classic steel doors.
Designers can specify any grid pattern, all crafted with precise shadow lines and authentic steel-inspired geometry. To further the realism, the system offers variable bottom rail heights, allowing each opening to replicate the stance and visual weight of a genuine steel door.
UNIVERSAL COMPATIBILITY
A Module For Any Series
Steel Essence™ is not a standalone product — it is a design philosophy that integrates seamlessly across the entire Styline system portfolio. Every series can receive the Steel Essence treatment, ensuring a cohesive steel aesthetic throughout any project.
WHERE ALUMINUM MEETS THE SOUL OF STEEL
"A study in precision. A tribute to craftsmanship. And a new standard for timeless design."SPECIFY STEEL ESSENCE™
