PIVOT 800

The Thinline Pivot Door

MINIMAL FRAME

A next-generation pivot door system that pushes the boundaries of minimal architecture. Designed with ultra-slim 2" top and bottom rails and refined 3/4" vertical stiles, the system maintains an elegant, continuous visual rhythm across every elevation. Its maximum 1-15/16" complanar astragal ensures seamless alignment between panels.

SPECIFICATIONS

Vertical Stile3/4"
Top/Bottom Rail2"
Astragal1-15/16"
Glass Appearance99%

SERIES OPTIONS

PD800 Pivot Door

The Icon

The PD800 Pivot Door has become one of the most iconic statements in modern architecture. Designed around an ultra-slim 3/4" vertical stile, the PD800 seamlessly aligns with our Thinline Series sliding systems, creating a unified minimal language throughout the home. This door offers one of the most glass-dominant aesthetics in the industry, delivering a breathtaking 99% all-glass appearance while achieving a fully sealed perimeter.

ENGINEERED FOR SCALE

Massive Capabilities

Individual glass panels reaching 25' tall — engineered to perform at monumental scale.

6'Person for scale — 6 feet tall
300"

25'

MAX PANEL HEIGHT

3/4"

VERTICAL PROFILE

PROJECT GALLERY

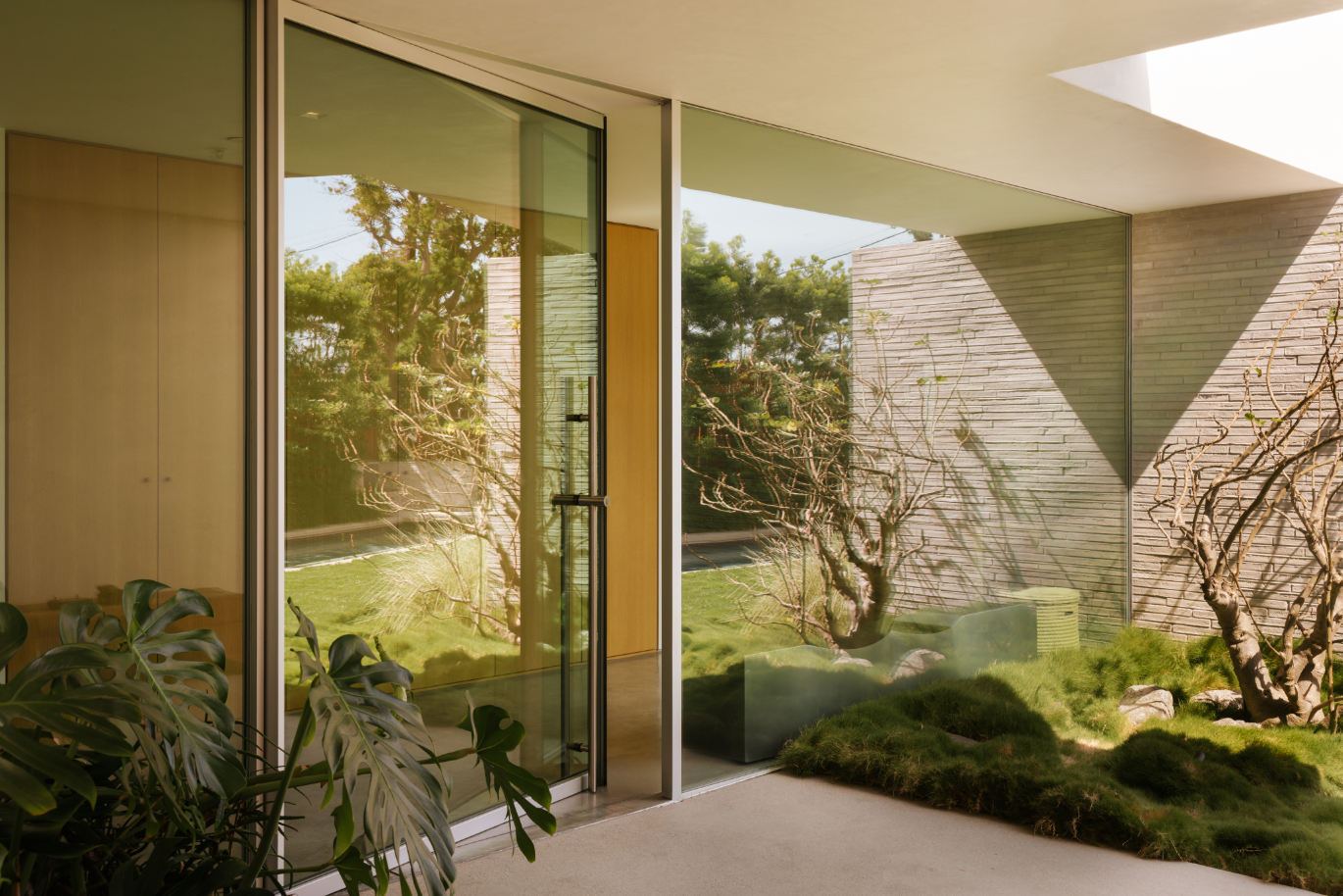

Styline PD800 minimal frame pivot door entry at Queensbury residence with floor-to-ceiling glass and garden courtyard

TECHNICAL RESOURCES

Architectural DetailsFinish OptionsCare & Maintenance

FREQUENTLY ASKED QUESTIONS

About the PIVOT 800

The Styline PD800 achieves a 99% all-glass appearance thanks to its ultra-slim 3/4-inch (19mm) vertical stiles and refined 2-inch top and bottom rails. This makes it one of the most glass-dominant pivot doors available in the architectural market.

The Styline PD800 features the world's thinnest coplanar astragal at just 1-15/16 inches (49mm). When two pivot panels meet, the combined meeting stile is smaller than a single stile on most traditional pivot doors from other manufacturers.

Yes. The PD800 is designed with the same 3/4-inch vertical stile dimension as the THINLINE 2500 Series sliding door. This creates a unified minimal-frame language when pivot and sliding systems are used together in the same architectural project.

The PD800 supports monumental-scale panels engineered for large architectural openings. Maximum dimensions depend on glass weight, wind load requirements, and configuration. Styline's engineering team provides project-specific sizing guidance.

The Styline PD800 offers the thinnest vertical stile (3/4 inch) and thinnest coplanar astragal (1-15/16 inches) of any pivot door system. Most competing pivot doors have stiles ranging from 2 to 4 inches, making the PD800 significantly more minimal in appearance.

REQUEST A QUOTE

Interested in the PIVOT 800?

Fill out this form and our team will respond within one business day with specifications, pricing, and lead times for your project.
