THINLINE 2500

minimal frame sliding door

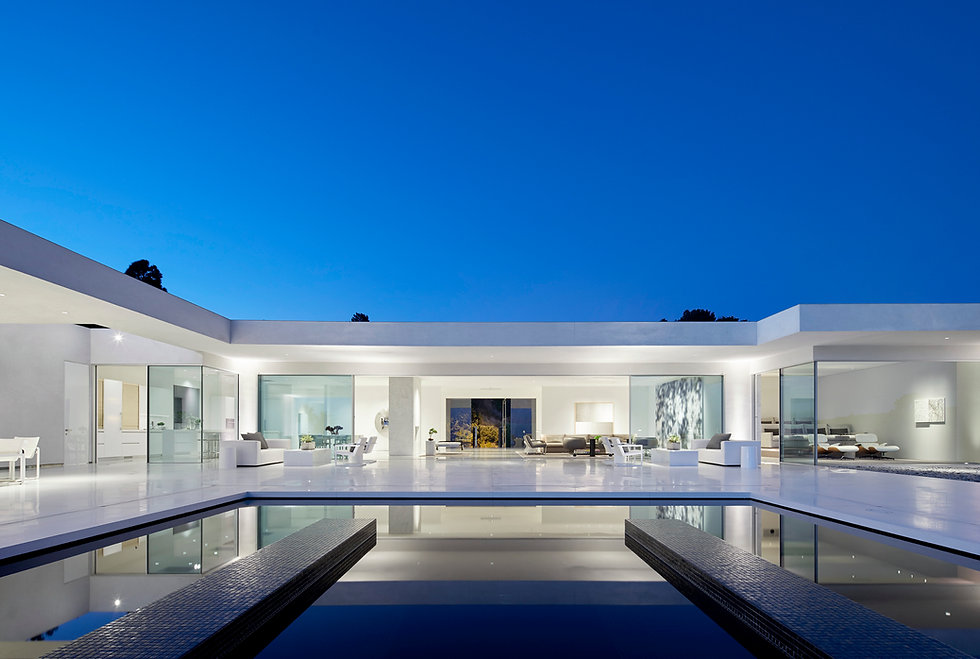

The Minimal Frame Sliding Door

A state-of-the-art sliding system that explores the structural properties of glass, enabling the execution of large glazed areas with the use of minimal profiles. Unlike traditional sliding systems, glass is the THINLINE series structural component, while the frame guides the motion of the door. This takes away the need for all unwanted elements that compose a traditional sliding system, by embedding the frame in the walls, floor, and ceiling, enabling an expanded and visually unobstructed perspective. Its 3/4" vertical profiles keep a consistent, unifying and almost imperceptible connection between panels.

Minimal frame

Big Views

SERIES OPTIONS
Standard Sill

Our standard sill system offers a clean transition of interior and exterior spaces including the look of the sill profile. This sill option is available and fill length and Staggered options

Hidden Sill

The Hidden Sill offers a near-seamless transition of interior and exterior spaces. Designed with a single 3/8" wide linear slot for each operable panel by integrating flooring between each track. Flooring details are easily removable for easy maintenance and cleaning.


In-Lay Options

Standard

Screenshot 2019-10-18 18.11.17.png

Stone

Screenshot 2019-10-18 18.05.04.png
PRODUCT FEATURES
3/4" Vertical Profiles

The world thinnest sliding profile, featuring 3/4" vertical profiles.

Extreme Panel Sizes

Our panel sizes are limited only by the industrial production limit in glass processing.

Integrated Sub-Sill Design

Our Thinline series sliding doors feature a world-class integrated sub-sill drain design. Allowing for immediate water evacuation in three separate options.

Unlimited Configurations

The Thinline series are all modular in their designs. Capable of any configuration from pocketing, stacking, bi-parting, postless corners, and unlimited panels.

With the push of a finger

unlike the typical rolling sash design, the THINLINE™ series doors were designed to glide. With the stainless steel ball-bearing track design, this system is capable of moving massive panels with the push of a finger!

Extreme Sizes

With the THINLINE's uniquely designed track system, each operable panel has two rollers for every linear five to six inches of track, each wheel capable of carrying a five hundred pound load. This creates far less friction with the movement of each panel, constraining us only to the industrial production limit in glass processing.

Thermally Broken

The THINLINE systems have an exceptional ability in reaching even the strictest energy codes. Our Thermal Breaks are made from a complex profile of polyamide 6.6 with 25 % fiberglass reinforcement, which ensures high impact-resistance. Using a high-end extrusion method ensures smooth surfaces and precise geometry despite the fiberglass reinforcement for a high-performing, reliable solution.





OUR HANDLE

Our handles are designed to disappear. Running the entire vertical length of the lead panel, there is no obnoxious hardware, only a finger pull. Our lock hardware is a simple, elegant throw bolt. Utilizing a 3/8" grade 303 Stainless Steel that is undeniably strong, yet subtle in appearance.

ALUMINUM COLORS /  FINISHES

Standard Anodized Finishes

Satin / Clear

F6 - Dark Bronze

Custom Anodized Finishes

F5- Medium Bronze

F4 - Bronze

Aluminum Colors

Standard Anodized Finishes are available in-stock. Our Doors and Windows can be customized to match almost any finish. Samples shown are representative only. For exact paint swatch samples, please contact us.

Download our Finishes Brochure

Custom Colors

Have a specific color in mind? We can customize the color of your Thinline™ Door to match virtually any finish.

Kynar® Finishes

F3 - Light Bronze

F2 - Champagne

F1 - Light Champagne

F0 - Stainless

F3G - Gold

F1G - Gold
